What are cardboard display boxes

What is a cardboard display box? Previously we have said what is cardboard display rack, it and cardboard display box using the same material, are using corrugated paper, this paper is also called also known as pit paper, it is not ordinary paper.

The difference between cardboard and paper

It is usually quantitative and thickness to distinguish between the general quantitative more than 200g/m2, the thickness is greater than 0.5mm is called cardboard (another way of saying: the general thickness is greater than 0.1mm of paper called cardboard. General quantitative less than 225g/m2 is considered paper, quantitative 225g/m2 or more is considered paperboard)

Pit Box Facing Paper

• powder gray paper, one side white, one side gray, the price is low, double powder paper both sides are white, the price is high.
• according to the shape and size of the product to determine the material of the color box. Commonly used materials are: 280G chalk gray paper, 300G chalk gray paper, 350G chalk gray paper, 260G chalk gray laminating E pit, 260G double chalk paper laminating E pit and so on.
• According to the packaging weight of the product and the positioning of the product, the commonly used materials are:
• Chalk paper: generally 250g-450g; coated paper: generally 250g-400g

Pit paper

There are K,A,B,C,D,E,F,G, commonly used is A,B,C,E,F. Of course, they are all UV corrugated, C corrugated, North America used more.

A=A flute is U type B=B flute is V type, C=C flute is UV type.

Each flute type has a compression ratio coefficient (the shortening of corrugated medium in the length direction caused by fluting, the shortening ratio becomes the compression ratio coefficient).

Specifically: A flute, 1.59/B flute, 1.36/C flute, 1.50/E flute, 1.27….

Pit pattern early as long as the A-shaped, its bearing force is high, but more material, so in different needs to carry out the B and C-shaped, B-shaped corrugated wave amplitude is narrower, the corrugation is shorter, the bearing force is finer, but with less material. And C-shaped pit pattern like A-shaped broad, but shorter than B-shaped, so C pit paper is thinner than A, B pit paper. Even if the same quality of face paper and liner are used, due to the difference in flute shape, the performance of the corrugated board is also somewhat different. Currently, there are four types of corrugated flute shapes in common use internationally, namely.

• A-type flute,
• C-type flute
• B-type flute
• E-type flute

Difference

A-type flute made of corrugated cardboard has better cushioning, with a certain degree of elasticity; C-type flute is second to A-type flute, but the stiffness and impact resistance is better than A-type flute;

B-type flute arrangement density, made of corrugated cardboard surface flat, high pressure, suitable for printing; E-type flute because of the thin and dense, more presents its rigid strength.

Before each corrugated simply does not exist in quality comparability, they have their own advantages and disadvantages, for example, for smaller specifications, limited space cartons, the use of A tile undoubtedly overly strengthened the cushioning of the carton, and the price paid is to more shrink the limited volume itself, while the B, C two corrugated is more suitable for the attributes of this type of carton. The fine pit pattern with a thinner body of powder gray card is not easy to show the pit pattern, from which the cost can be reduced. Nowadays, it is mostly used in the packaging of high-class consumer goods such as cosmetics and cell phones.

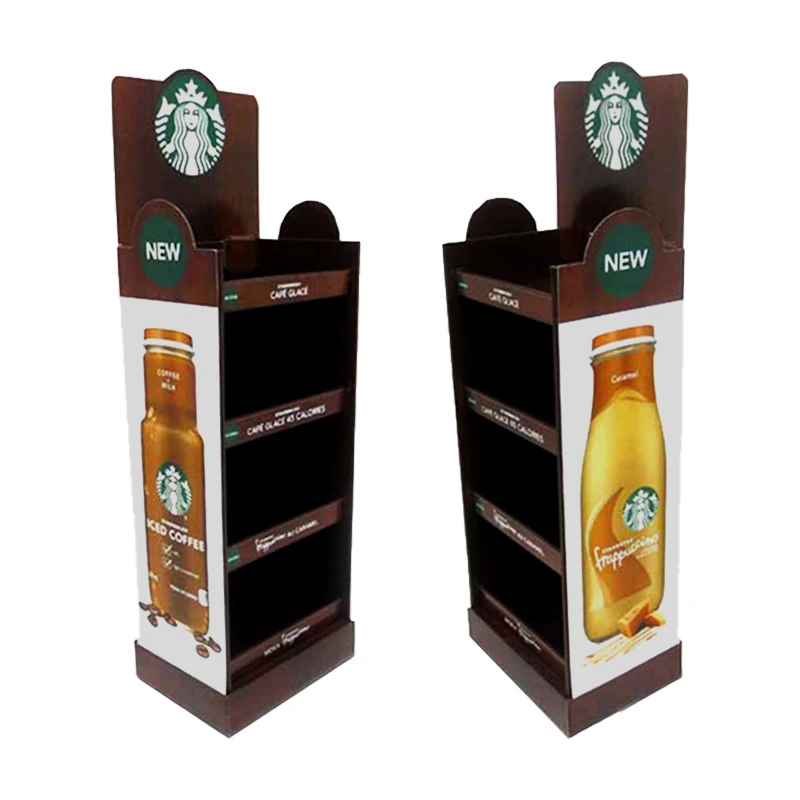

The cardboard display box here is a kind of packaging box made of this corrugated paper, which not only needs to be firm, but also has the function of publicity, so customers usually customize the cardboard display rack.

In short, cardboard display racks and cardboard display boxes belong to the packaging category, they all have the function of promotion and publicity display, but one is a rack, the use of storage to display more commodities, promotional function is more powerful, while the cardboard display box is more used for supporting the packaging, but also has the function of publicity, usually less storage of commodities, the focus is not quite the same.
